Spanish A screw can pass a basic size check while the washer configuration or another component requirement remains unresolved. What should a buyer review before approving an assembled fastener?
Screw and washer assembly inspection starts with the agreed configuration: the screw, both washers, their arrangement and the acceptance requirements for the finished item. Sample approval and production checks should refer to that same specification.

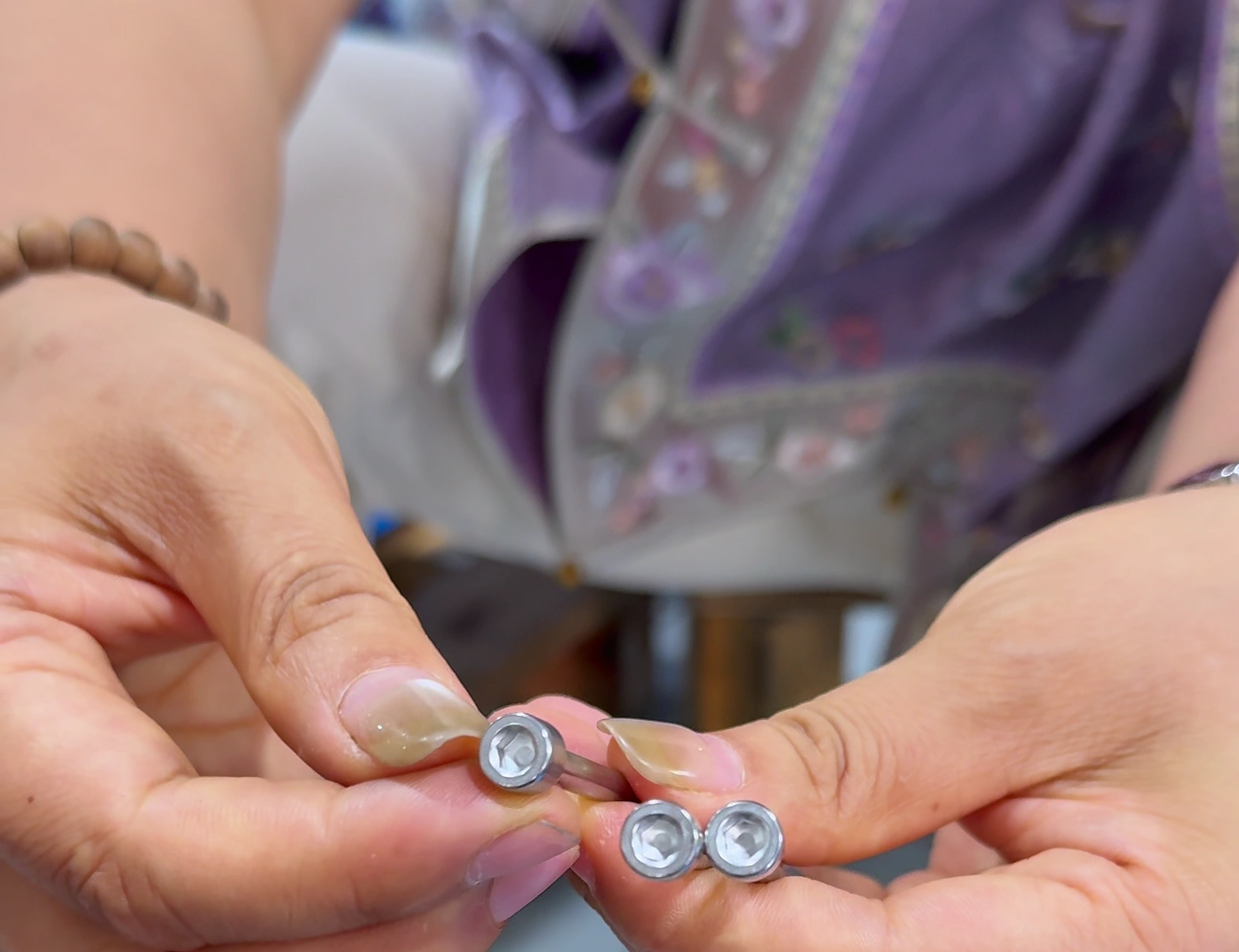

This Hongyuan customer case concerns socket head screws with two preassembled washers. The customer had previously encountered small cracks in screw heads, tested Hongyuan samples and was pleased with the results before placing an order. The video describes screw and flat-washer optical inspection, consistent quality feedback and a packing detail for this particular order.
What Concern Did the Customer Raise During Sample Review?
The customer’s concern was small cracks in the screw heads they had previously sourced. A useful sample review starts by making that concern explicit. Share photographs of the observed issue, explain where it appears and agree how the proposed samples will be evaluated.
In this case, the customer was satisfied after testing the Hongyuan samples. For a new project, define the sample test method and acceptance criteria with the responsible engineer, then record the approval reference.
What Should the Screw and Washer Specification Include?

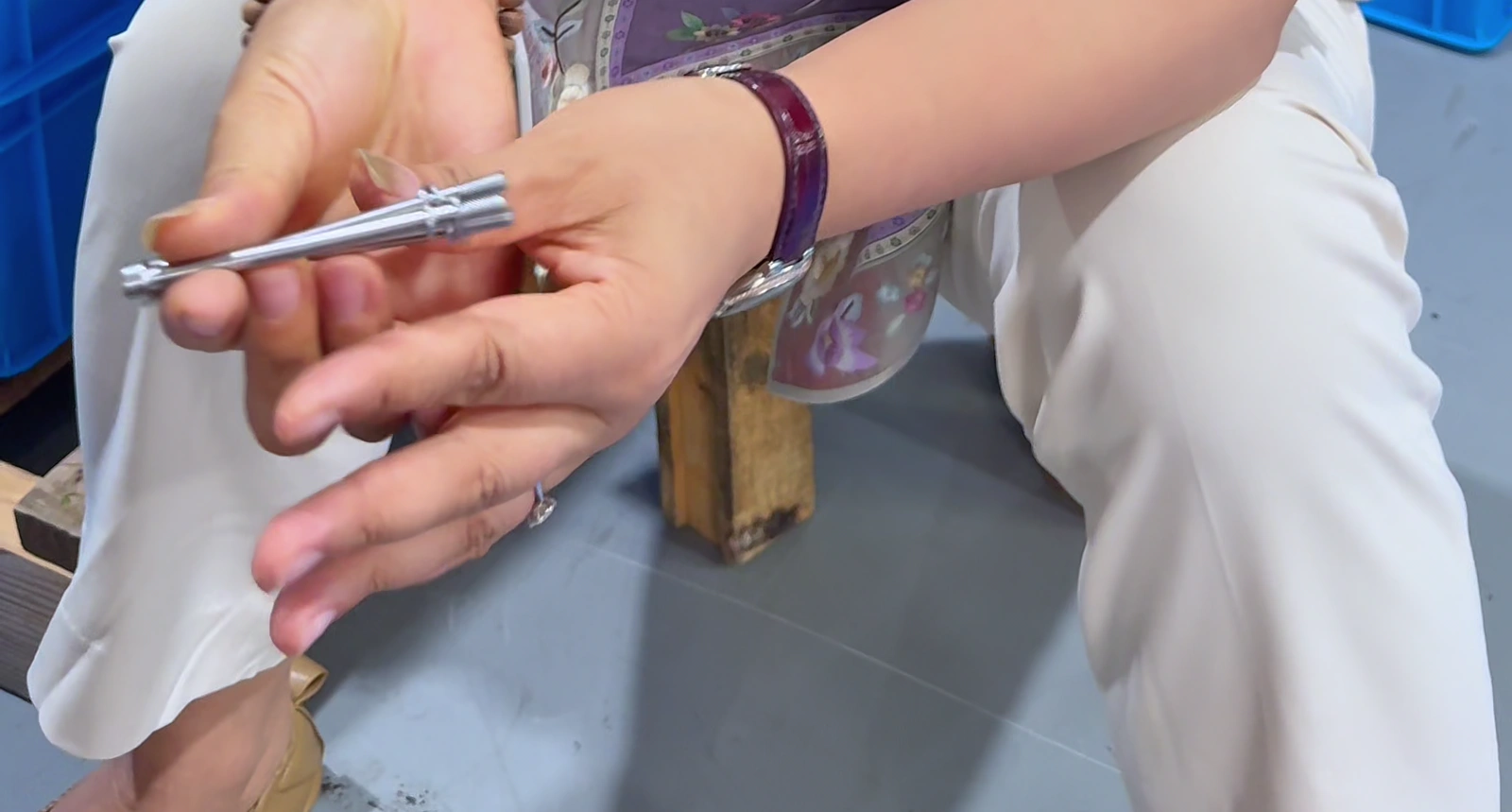

The order shown is a socket head screw with two preassembled washers. A quotation request should identify the screw and each washer separately, then explain the required assembled configuration. Do not rely on a photograph to establish washer material, dimensions or the function of the second washer.
Identify washer order, required fit and any assembly checks on the drawing or specification. If a buyer has only a physical sample, use it to start the discussion and resolve missing requirements before approving production.
| Component or requirement | Information to provide | Question to resolve |
|---|---|---|
| Screw | Thread, length, head and drive details | Which dimensions and visible features control acceptance? |
| First washer | Type, dimensions, material and finish | How must it fit and sit in the assembly? |
| Second washer | Type, dimensions, material and finish | What is its function and required position? |
| Assembled configuration | Washer order and required assembly condition | Which checks confirm the specified configuration? |
| Packing | Required count, identification and protection | What should the receiving team expect in each pack? |
Why Are the Flat Washers Inspected as Well as the Screws?
For the order in the video, the screws undergo optical sorting to check dimensions and appearance. The flat washers also undergo optical inspection. Attention to the washers is a meaningful part of the process because they are supplied as components of the finished assembly.
The role of inspection should be described precisely. Dimensional and appearance checks address the features they are configured to evaluate. They should not be presented as proof of material grade, mechanical performance or corrosion resistance unless the relevant requirements have been assessed separately.
When reviewing a supplier’s inspection plan, ask which screw and washer features are checked, what acceptance limits apply and whether additional application testing is required. Agree the inspection coverage and any additional tests for your own application.
How Should Sample Approval Connect with the Production Order?
The customer’s positive feedback focused on consistency. To make that expectation usable, keep the approved sample discussion attached to the production specification. Identify the drawing revision and record any agreed differences between a sample and the ordered product.
A familiar-looking screw is not enough to define a repeat order. Buyers should confirm whether the material, finish, component configuration or packing instructions have changed. Our custom screw RFQ checklist provides a starting point for collecting these inputs.
What Packing Details Should the Buyer Confirm?
At the packing stage of this order, Hongyuan includes an extra screw in each pack to help avoid short quantities. This is a detail of the case shown, rather than a general packing promise for every order.
For your own purchase, agree the required quantity per pack, labels and protection with the supplier. If extra pieces are included, clarify how the pack count is described so the receiving team can distinguish the ordered quantity from the additional allowance.
Frequently Asked Questions
Can I request a quotation from a photo of an assembled screw?
Yes, a photo can start the discussion. A drawing or sample and clarification of the screw, both washers, material, finish and quantity are needed to define the quotation scope.
Does optical inspection replace every other quality check?
No. In this case, it is used for dimensions and appearance. Other acceptance requirements need appropriate evaluation agreed for the application.
Will every order include an extra screw in each pack?
The video describes this practice for the customer order shown. Confirm the count and any additional allowance in the packing specification for your own order.
What Should You Send Hongyuan for an Assembly Quotation?
Browse our Screws, Washers and Customized Screw ranges for reference configurations. Send the drawing or sample details, material, finish, application, quantity and inspection expectations.
Contact Hongyuan Fastener to review your assembled fastener project and request a quotation.
