1. Who We Are

Ningbo Hongyuan Precision Hardware Manufacturing Co., Ltd. is a China fastener manufacturer, we will provide a detailed introduction through both video and text.

Established: 2005 (21 years of experience in custom non-standard fasteners)

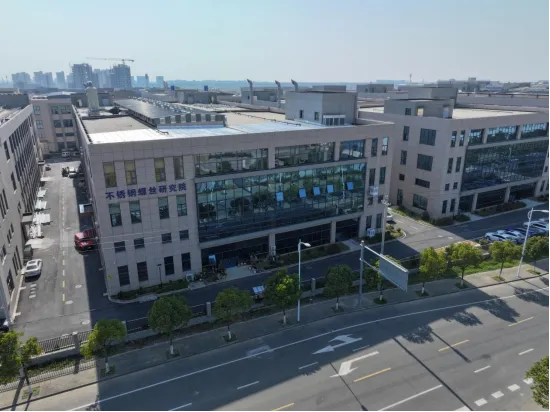

Facility: 13,000 m² self-owned production base

Materials processed: Stainless steel (SUS304, 316), brass/copper, aluminum alloy (2A12, 6061), carbon steel (10B21, SCM435, 40Cr, 10.9/12.9 grade)

Primary markets: Automotive (Tier 1/Tier 2), electronics & connectors, home appliances, photovoltaic mounting systems, communication equipment, power tools, and plumbing hardware

2. Production Capacity at a Glance

Equipment Type	Quantity	Specification / Capability

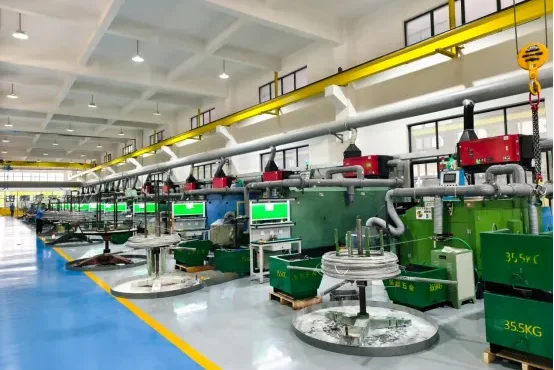

Single-die cold heading machines	110 units	Wire diameter: Φ0.8–12 mm; Maximum upset length: ≤150 mm
Multi-station cold headers (3–6 stations)	40 units	Complex head forming (flange, socket cap, step head, custom shapes) – replaces secondary machining
Thread rolling machines	100 units	Thread range: M1.0–M16; Capable of producing self-tapping threads, trilobular threads, fine pitch threads, and locking threads

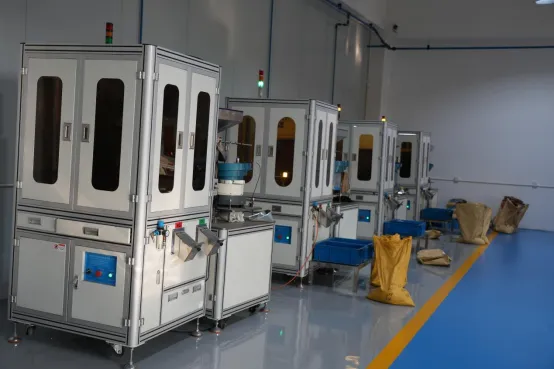

Optical sorting machines	20 units	100% inspection capability for head cracks, material shortage, hexagon gauge, thread go/no-go, OD/length sorting; Accuracy: ±0.01 mm
Roller gauging sorters	8 units	In-line thread runout and radial dimension monitoring
Handheld spectrometers	2 units	Incoming material & finished goods material verification – zero mix-up guarantee
Blister packaging machines	1 unit	Custom blister-card packaging for retail-ready present

3. Technical Strengths & Capabilities

Cold-heading ratio: Up to 3.5× wire diameter in a single stroke – enables complex head geometries with minimal material waste.

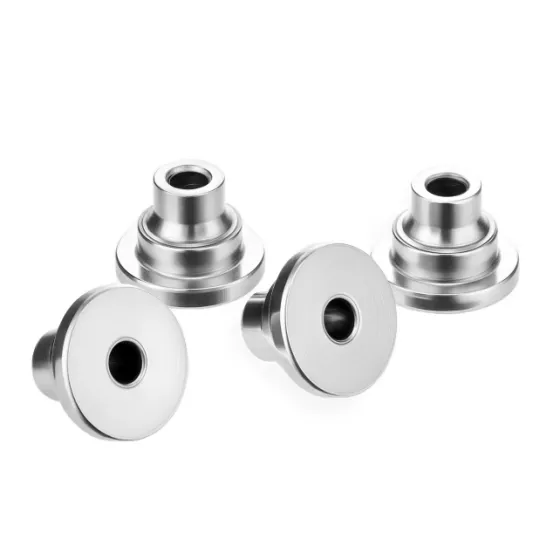

Specialty products: Assembled screws (with flat/wave washers), rivet pins, hollow rivets, dowel pins, electrode tips, and non-standard combination units.

Thread accuracy: Achievable to 6g / 6H per ISO/DIN/GB/JIS standards.

Value-added options: Pre-applied thread-locking coatings (NYLOK / Scotch-Grip) and friction-coefficient adjustment to match your assembly torque requirements.

Surface treatment coordination: Reliable partnerships for zinc plating, Dacromet, Teflon, black zinc, stainless steel passivation, and heat treatment (quenching & tempering).

4. Quality Assurance & Certifications

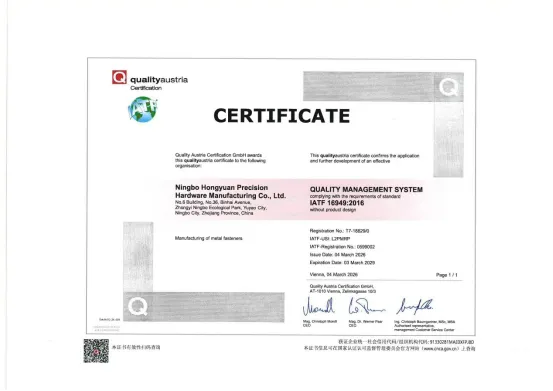

Certifications: IATF 16949:2016 (automotive), ISO 9001, ISO 14001, ISO 45001 – full process control from incoming material to dispatch.

Process control: SPC real-time monitoring with first-off, in-process, and final inspections; all critical dimensions are 100% optically sorted – not AQL sampling.

Mechanical testing: Hardness (HRC/HV), tensile/yield strength (outsourced to accredited labs), and torque-tension correlation testing available.

Documentation: Each batch comes with a complete inspection report (dimension, material certification, hardness, torque data) – sent digitally in advance or with the shipment.

5. Prototyping & Lead Times

Service Standard	Lead Time	Remarks
Custom Samples (Non-Standard Screws)	24 hours (for most configurations)	Simple tooling available; complex shapes may require ≤72 hours
Mass Production	7–15 days	Depending on process steps & surface treatment
Urgent Orders	Response within 4 hours	Dedicated production line available upon request
Minimum Order Quantity (MOQ)	1 piece	No minimum barrier for R&D sampling and prototype testing
Tooling Policy	Negotiable	Tooling costs can be partially or fully waived/refunded based on future production orders

6. Logistics & Delivery

Local delivery (within 50 km of Ningbo): 6 company-owned vans – free direct delivery, same-day or next-day service.

Export logistics: Only 30 km from Beilun Port – efficient container loading and customs clearance support.

Shipping documentation: We provide commercial invoices, packing lists, material certificates, COO (Certificate of Origin), and any other export paperwork required.

7. Why Partner with Us?

✅ One-stop solution – In-house cold heading, thread rolling, sorting, and packaging; no subcontracted processes, ensuring quality consistency.

✅ Cost transparency – We provide itemized BOM cost breakdowns (material + tooling amortization + processing + sorting + packaging) – no hidden charges.

✅ Engineering support – Our team offers design-for-manufacturing (DFM) feedback to simplify geometries, reduce secondary operations, and lower total cost.

✅ Problem-solving commitment – In case of any quality issue, we respond within 24 hours and submit an 8D report within 48 hours.
