Custom Stainless Steel Threaded Stud Bearing

Product Overview

This threaded stud is intended for buyers comparing geometry, assembly fit and material choice for equipment connection, suspension or adjustment. Its configuration is defined by the threaded sections, overall length, end features and any locating shoulder. Before quotation, Hongyuan checks engagement at each end, unthreaded locating sections and alignment and applied load rather than assuming a catalogue size from the image.

Product Photo Gallery

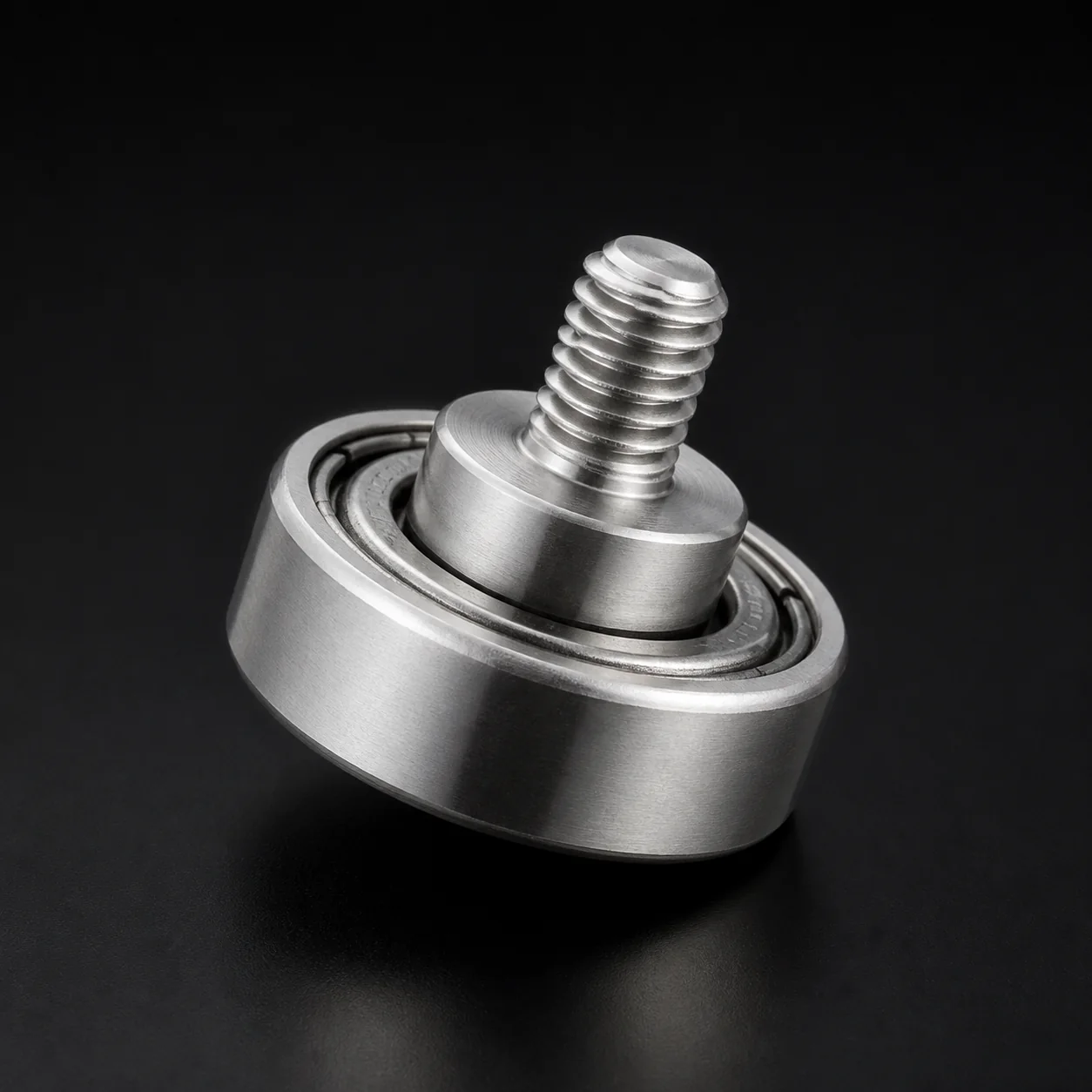

Complete Product View

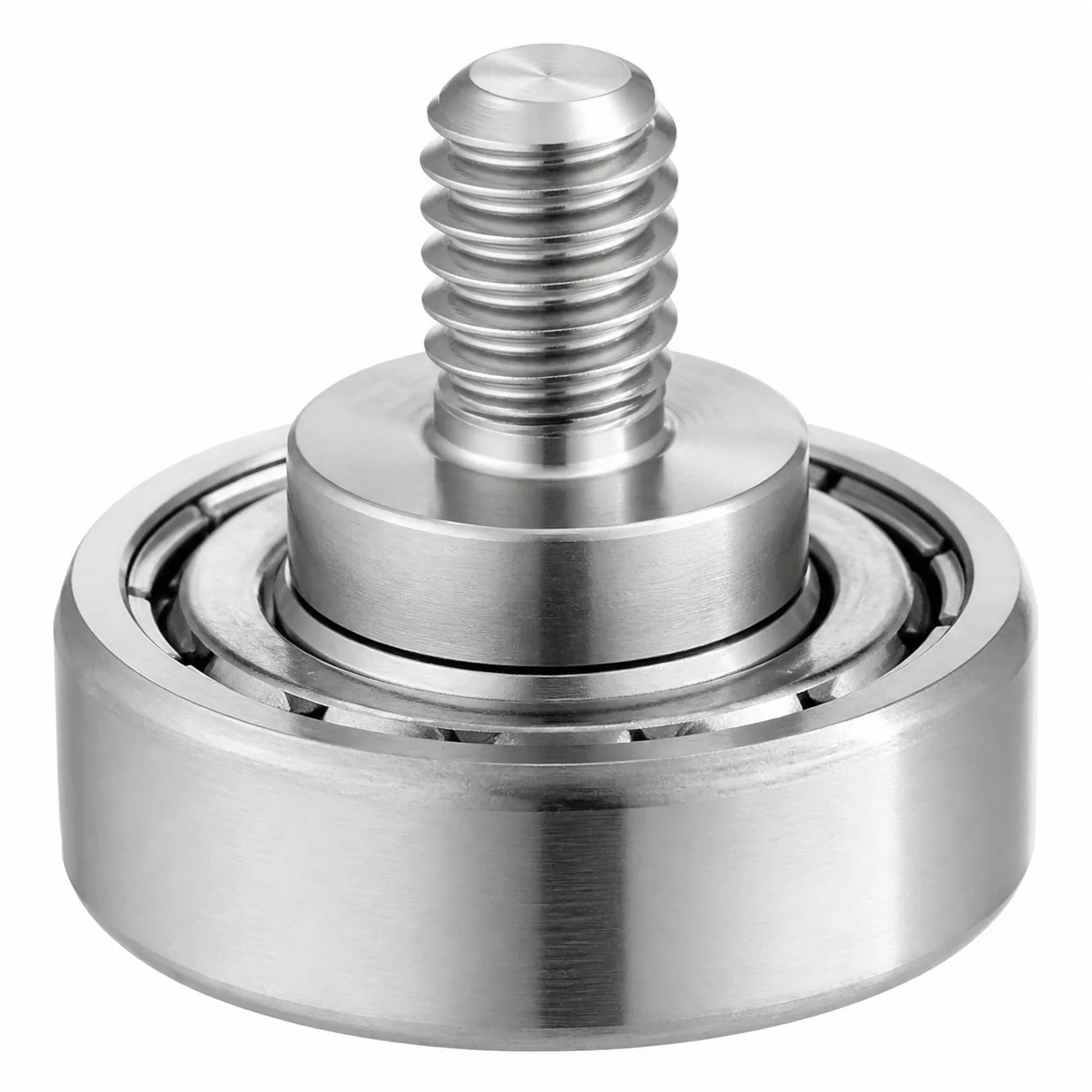

Head and Drive Detail

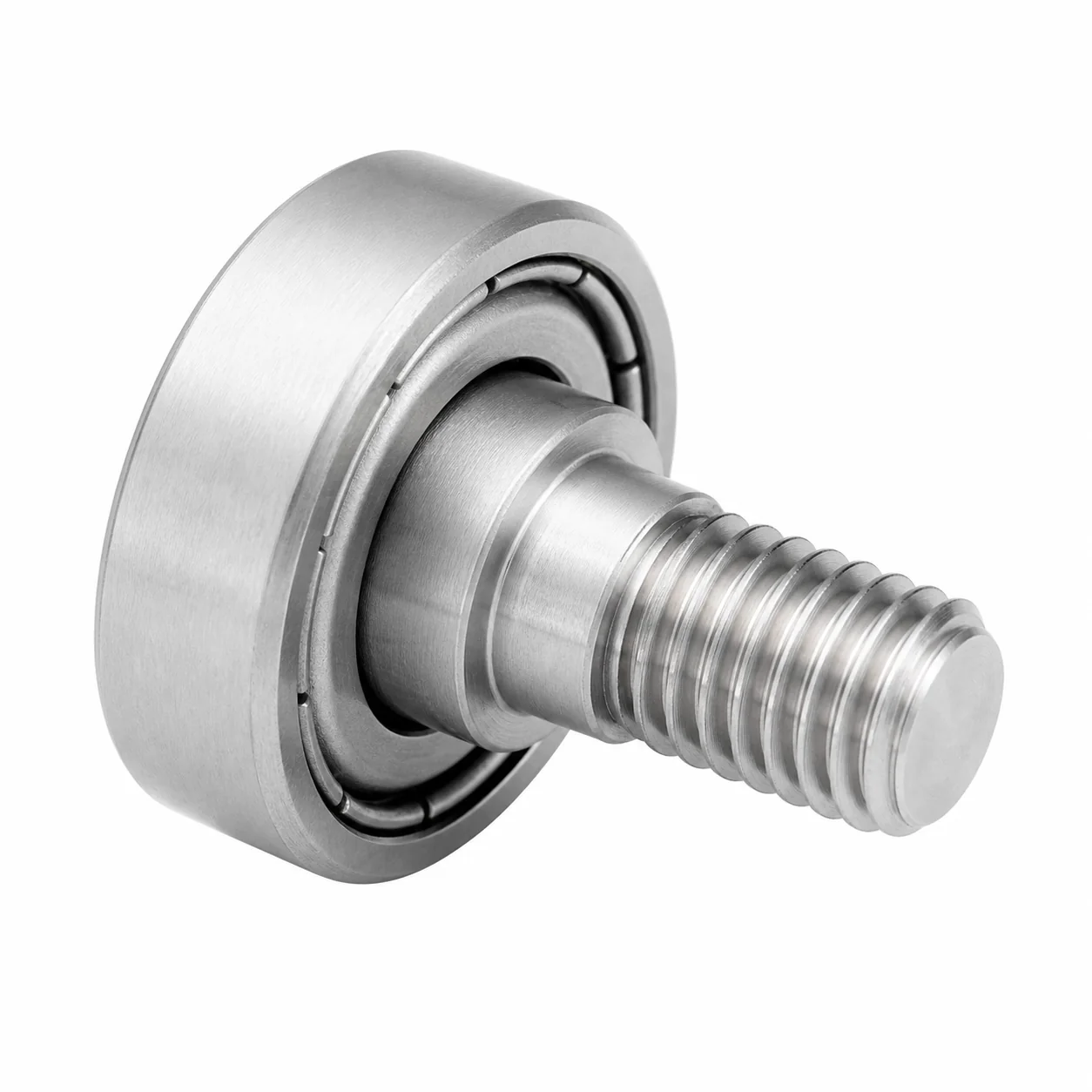

Thread / Body Detail

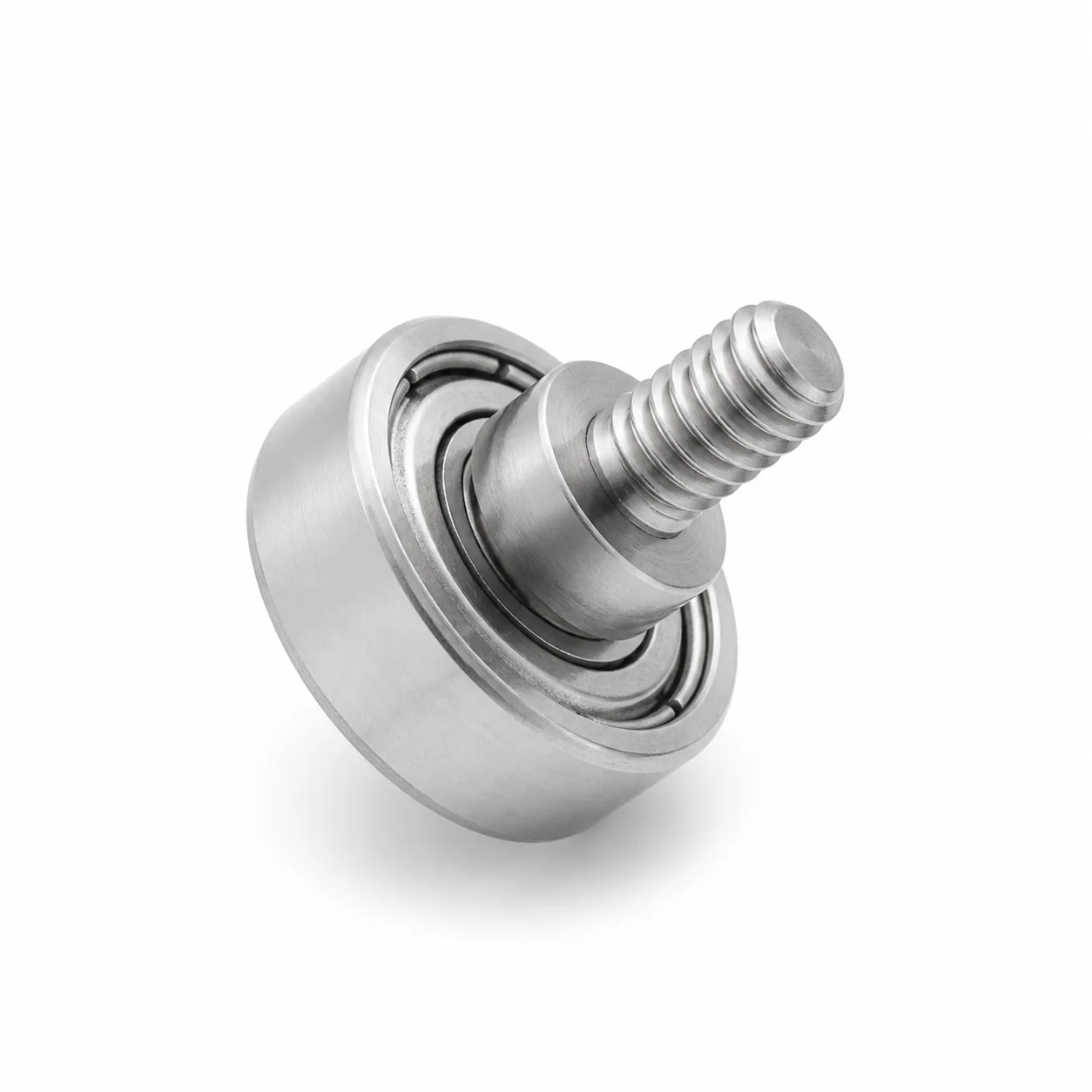

Side Profile Detail

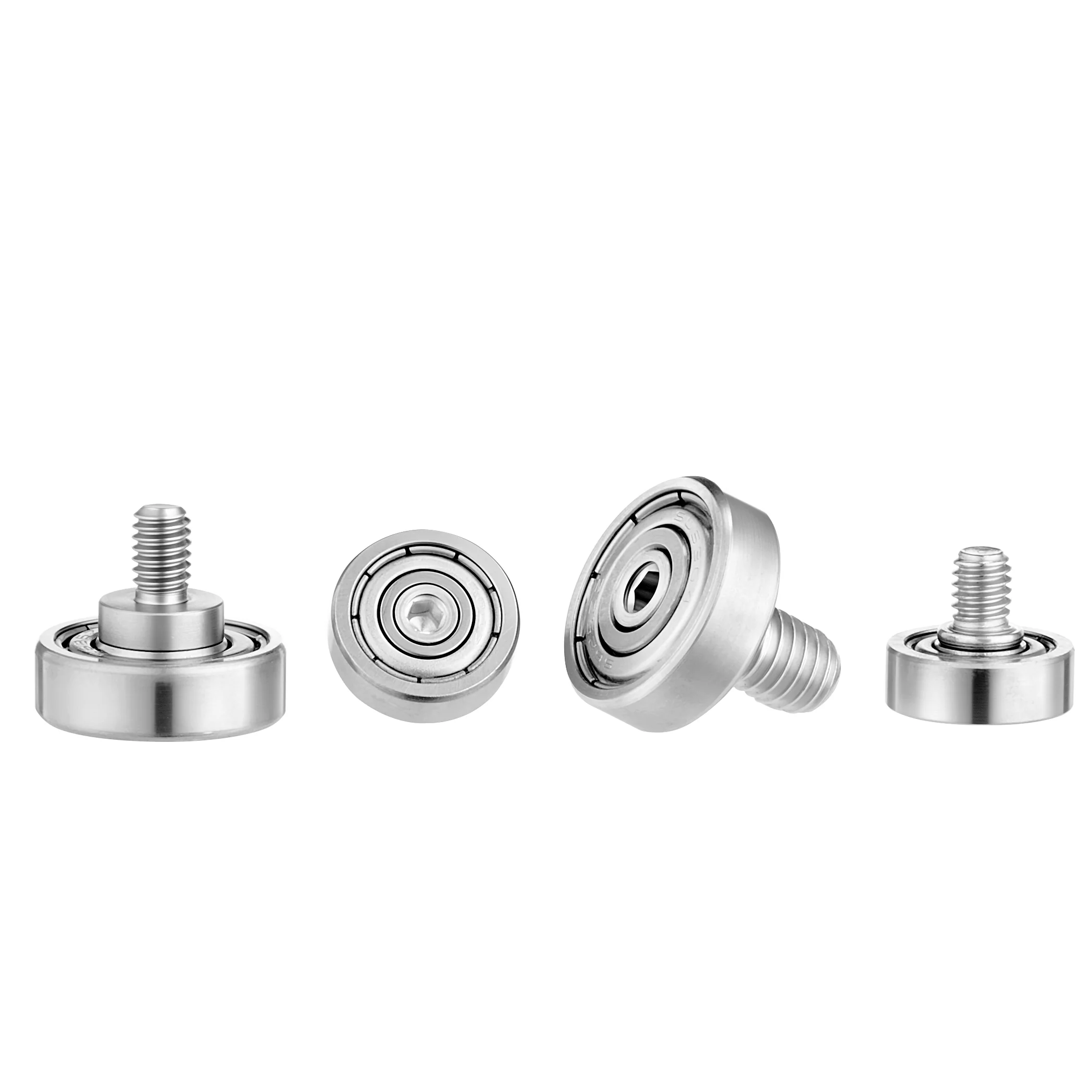

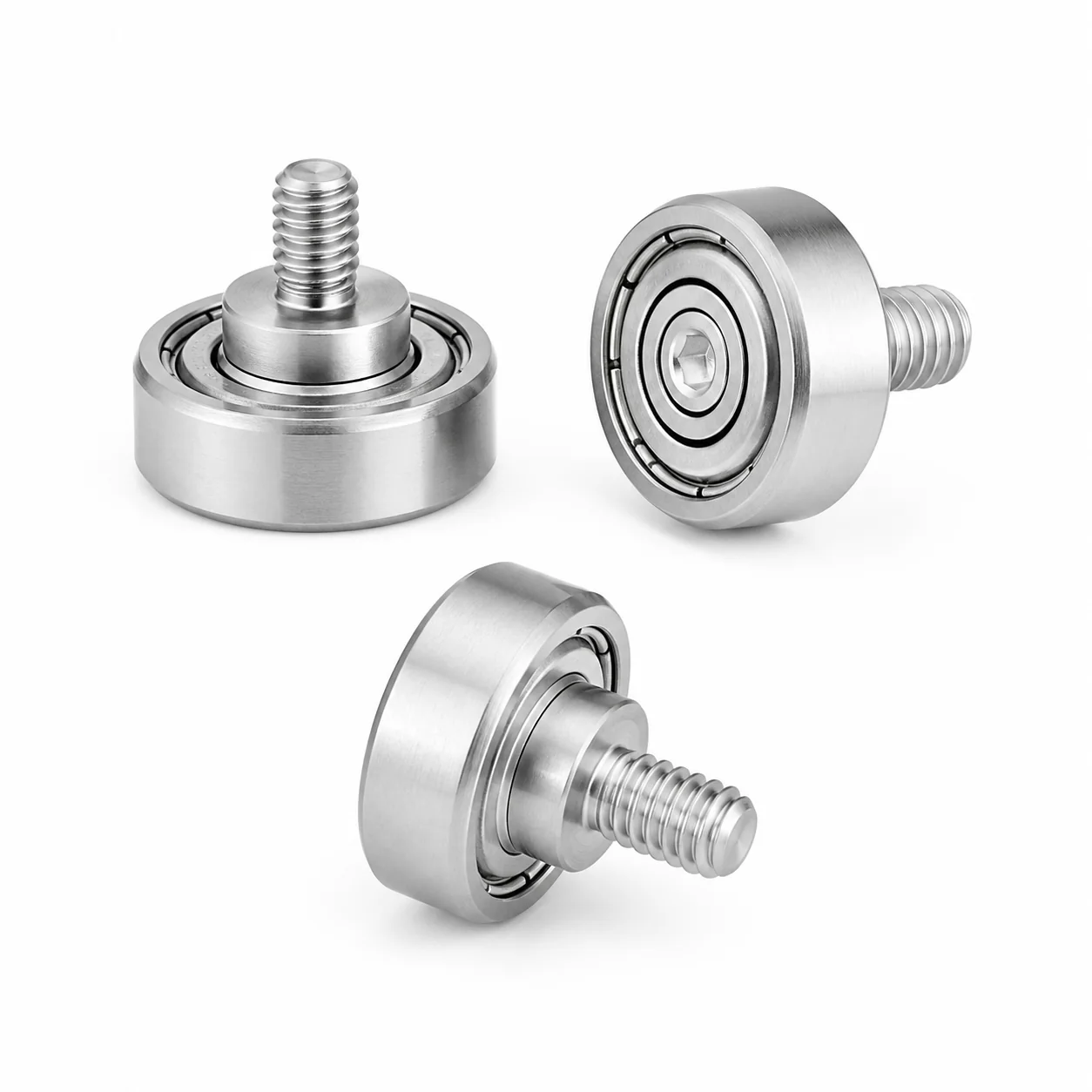

Multi-Angle Product View

Product Specifications

Selection and RFQ Notes for This Threaded Stud

Industrial product catalogues commonly separate comparable parts by standard, material/grade, diameter × length, pitch, thread coverage, head/drive and pack quantity. For this page those fields are treated as RFQ inputs, not assumed stock specifications.

• Size callout: State diameter × overall length, pitch, threaded length or grip length, and every non-standard shoulder, collar or bore dimension.
• Interface geometry: Confirm the threaded sections, overall length, end features and any locating shoulder, together with the mating-part dimensions and any installation clearance limit.
• Material condition: Specify stainless steel; grade such as 304 or 316 must be selected against the service environment; do not use the word “stainless” or “high strength” as the only acceptance requirement.
• Installation fit: Review engagement at each end, unthreaded locating sections and alignment and applied load for the intended equipment connection, suspension or adjustment.
• Inspection: Identify the dimensions and functions that are critical to the threaded stud, together with gauges, reports, sampling level and packaging protection.

Typical Applications

• rollers and guides
• bearing-supported mechanisms
• special equipment assemblies

Application suitability depends on the final material grade, dimensions, mating parts, load and environment. Please share assembly details for engineering review.

Drawing-Controlled Structure and Key Features

• Bearing and stud supplied as one component
• Compact threaded mounting
• Defined shoulder interface
• Custom geometry to drawing

These visible features guide the RFQ review, but production dimensions must be taken from an approved drawing, standard reference or verified sample.

Quality Inspection Process

For this geometry, dimensional inspection and an assembly-relevant functional check should be agreed before mass production. Typical checkpoints are shoulder or pin diameter, concentricity and step length, thread engagement, and burr and edge condition. Certificates or special reports are supplied when they are included in the quotation.

• Material and surface condition check
• Critical dimensional and tolerance inspection
• Thread gauge and drive geometry verification
• Final appearance, count and packaging inspection

Optical / Vision Sorting Inspection

For suitable higher-volume orders, optical or vision sorting can be evaluated for measurable and visible characteristics such as overall profile, head presence, length, drive condition and selected surface defects. The approved drawing and agreed functional tests remain the controlling acceptance criteria.

Drawing and Customization Requirements

For Custom Stainless Steel Threaded Stud Bearing, send a dimensioned drawing or marked sample showing the standard reference, material/grade, size notation, thread data where applicable, threaded sections, overall length, end features and any locating shoulder, finish and packaging. Also identify engagement at each end, unthreaded locating sections and alignment and applied load because these points affect suitability for equipment connection, suspension or adjustment. Any unmarked dimension remains subject to technical clarification before tooling or production.

Customization & Order Information

Frequently Asked Questions

Can Hongyuan manufacture from a physical sample?

Yes. A sample supports identification and reverse review, but a drawing or signed dimensional report should define the final acceptance criteria.

How are MOQ and lead time established?

They are quoted after material availability, forming or machining route, tooling, inspection level, finish, packaging and order quantity have been reviewed.

Which application details should accompany the RFQ?

Describe engagement at each end, unthreaded locating sections and alignment and applied load. These details help determine whether the proposed geometry and material suit equipment connection, suspension or adjustment.

Which dimensions are needed to quote this threaded stud?

Provide diameter, overall length, pitch, thread or grip length, head dimensions and every shoulder, collar, bore or point dimension that affects the mating parts.

How should the material grade be specified for equipment connection, suspension or adjustment?

State the required grade or alloy, mechanical condition, corrosion exposure and certificate requirement. The current material scope is stainless steel; grade such as 304 or 316 must be selected against the service environment.

Request a Quote

To quote Custom Stainless Steel Threaded Stud Bearing, send the target quantity, dimensioned drawing or sample, material/grade, finish, inspection and packaging requirements, and delivery destination. For a threaded stud used in equipment connection, suspension or adjustment, please also identify engagement at each end, unthreaded locating sections and alignment and applied load. Hongyuan will confirm manufacturability and commercial terms against the approved specification.

Explore more Hongyuan Fastener products or contact us with your drawing and quantity.
