Custom Stainless Steel Double-End Connector Stud

Product Overview

Custom Stainless Steel Double-End Connector Stud is presented as a custom fastener for equipment connection, suspension or adjustment. The purchasing distinction is its threaded sections, overall length, end features and any locating shoulder and the way those features engage the mating parts. The reference photographs support identification; production remains subject to an approved drawing, sample or standard.

Product Photo Gallery

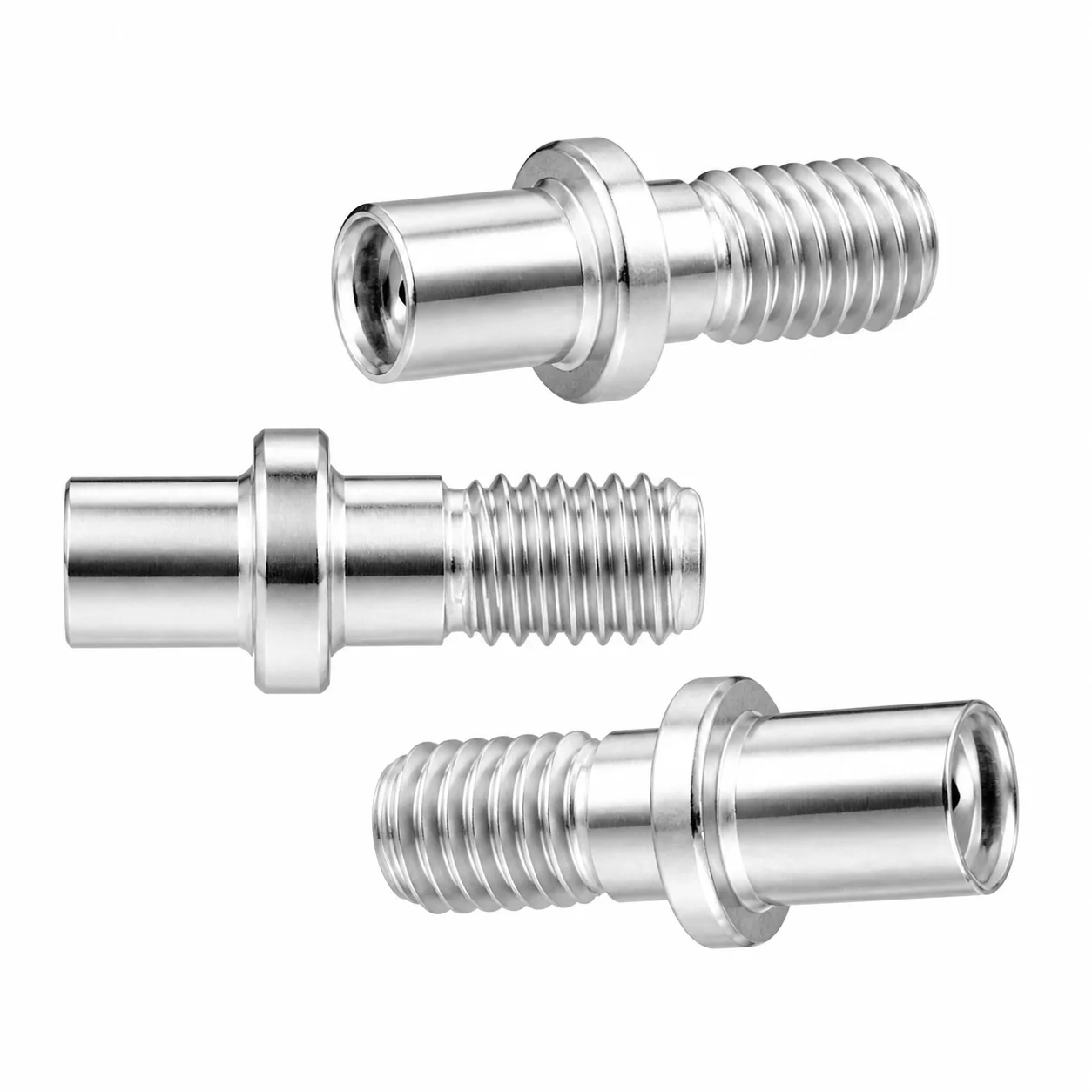

Complete Product View

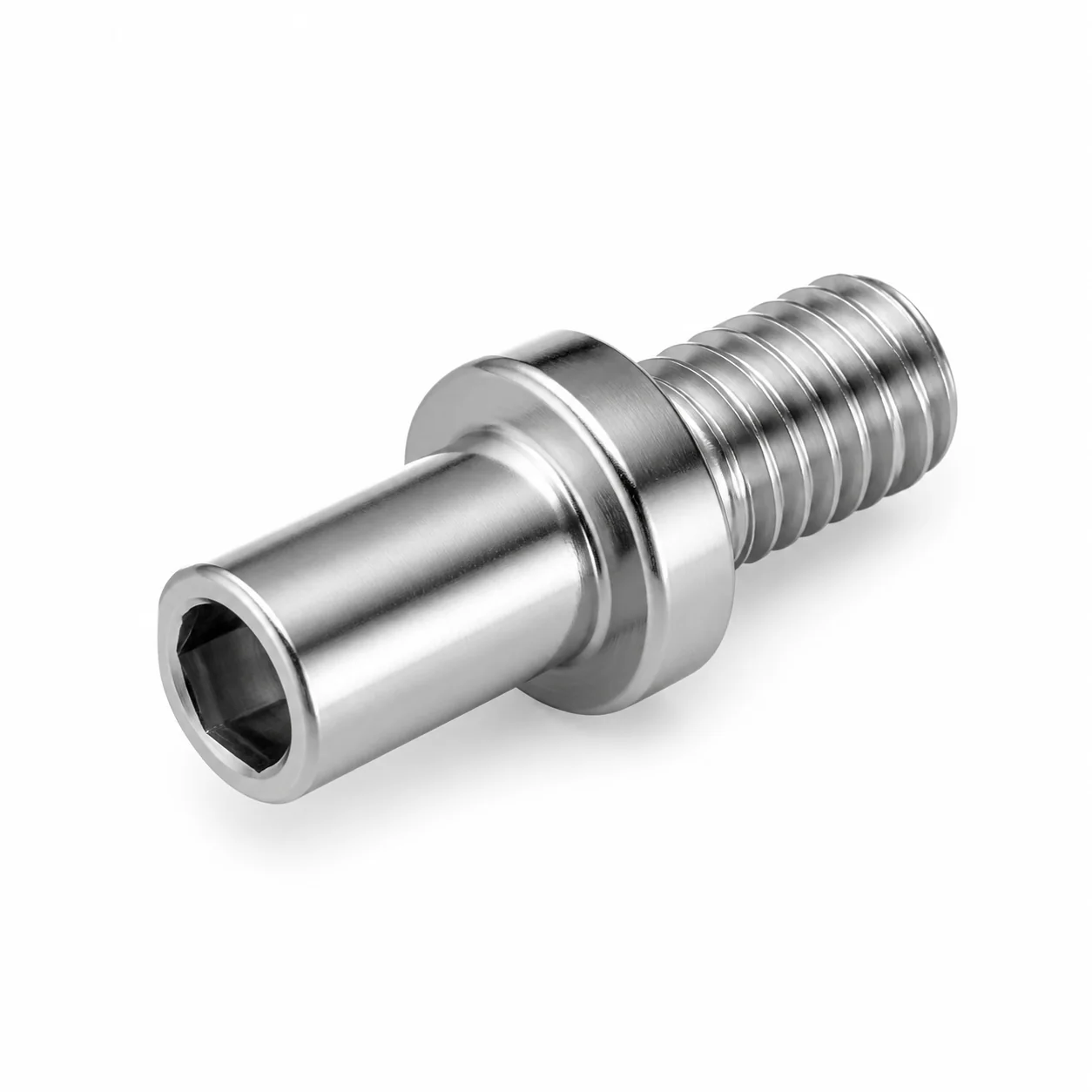

Head and Drive Detail

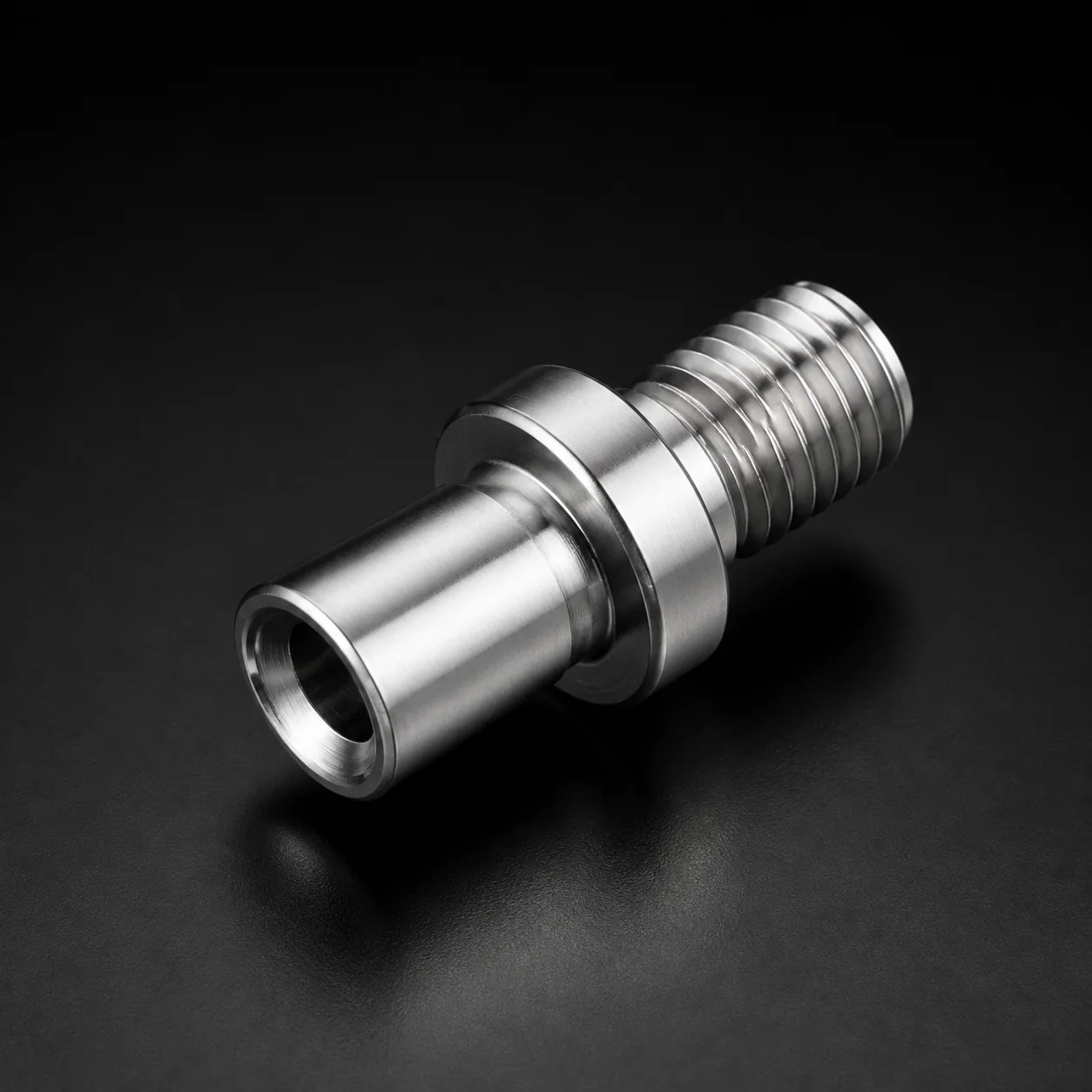

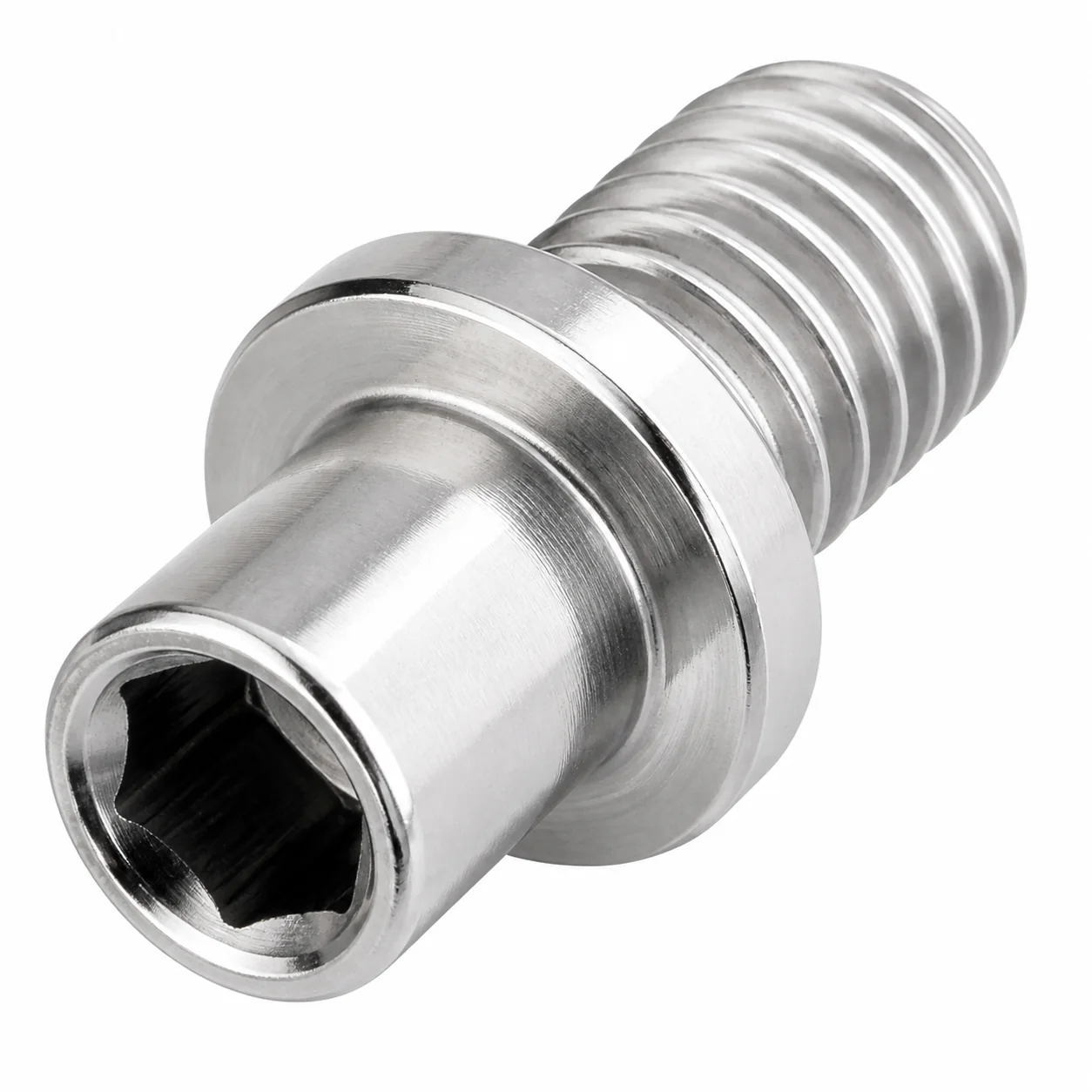

Thread / Body Detail

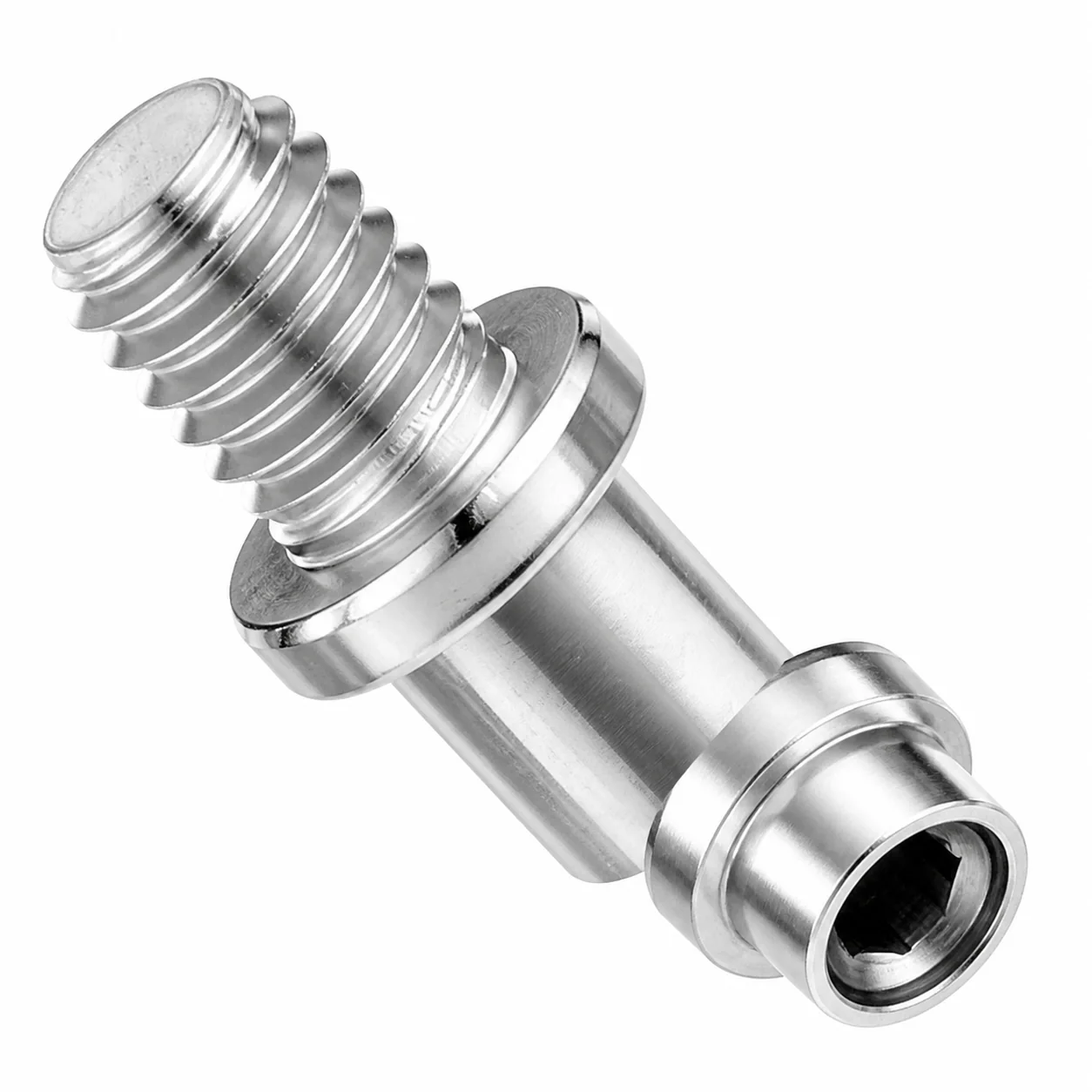

Side Profile Detail

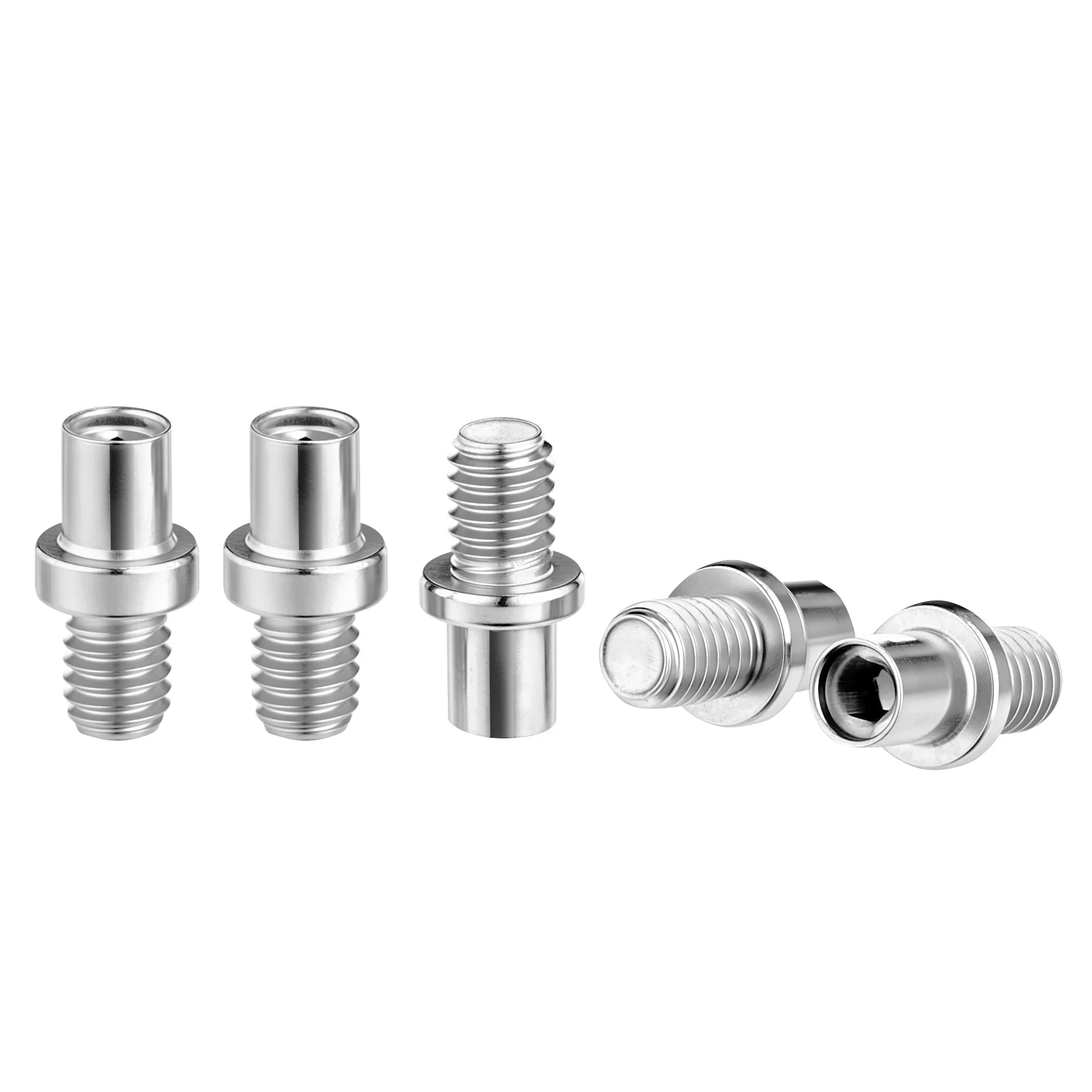

Multi-Angle Product View

Product Specifications

Selection and RFQ Notes for This Custom Fastener

Industrial product catalogues commonly separate comparable parts by standard, material/grade, diameter × length, pitch, thread coverage, head/drive and pack quantity. For this page those fields are treated as RFQ inputs, not assumed stock specifications.

• Size callout: State diameter × overall length, pitch, threaded length or grip length, and every non-standard shoulder, collar or bore dimension.
• Interface geometry: Confirm the threaded sections, overall length, end features and any locating shoulder, together with the mating-part dimensions and any installation clearance limit.
• Material condition: Specify stainless steel; grade such as 304 or 316 must be selected against the service environment; do not use the word “stainless” or “high strength” as the only acceptance requirement.
• Installation fit: Review engagement at each end, unthreaded locating sections and alignment and applied load for the intended equipment connection, suspension or adjustment.
• Inspection: Identify the dimensions and functions that are critical to the custom fastener, together with gauges, reports, sampling level and packaging protection.

Typical Applications

• bearing-related assemblies
• mechanical linkages
• special connectors

Application suitability depends on the final material grade, dimensions, mating parts, load and environment. Please share assembly details for engineering review.

Drawing-Controlled Structure and Key Features

• Two-end connection geometry
• Stepped locating surfaces
• Compact custom profile
• Made from approved drawing or sample

These visible features guide the RFQ review, but production dimensions must be taken from an approved drawing, standard reference or verified sample.

Quality Inspection Process

For this geometry, dimensional inspection and an assembly-relevant functional check should be agreed before mass production. Typical checkpoints are shoulder or pin diameter, concentricity and step length, thread engagement, and burr and edge condition. Certificates or special reports are supplied when they are included in the quotation.

• Material and surface condition check
• Critical dimensional and tolerance inspection
• Thread gauge and drive geometry verification
• Final appearance, count and packaging inspection

Optical / Vision Sorting Inspection

For suitable higher-volume orders, optical or vision sorting can be evaluated for measurable and visible characteristics such as overall profile, head presence, length, drive condition and selected surface defects. The approved drawing and agreed functional tests remain the controlling acceptance criteria.

Drawing and Customization Requirements

For Custom Stainless Steel Double-End Connector Stud, send a dimensioned drawing or marked sample showing the standard reference, material/grade, size notation, thread data where applicable, threaded sections, overall length, end features and any locating shoulder, finish and packaging. Also identify engagement at each end, unthreaded locating sections and alignment and applied load because these points affect suitability for equipment connection, suspension or adjustment. Any unmarked dimension remains subject to technical clarification before tooling or production.

Customization & Order Information

Frequently Asked Questions

How are MOQ and lead time established?

They are quoted after material availability, forming or machining route, tooling, inspection level, finish, packaging and order quantity have been reviewed.

Which application details should accompany the RFQ?

Describe engagement at each end, unthreaded locating sections and alignment and applied load. These details help determine whether the proposed geometry and material suit equipment connection, suspension or adjustment.

Which dimensions are needed to quote this custom fastener?

Provide diameter, overall length, pitch, thread or grip length, head dimensions and every shoulder, collar, bore or point dimension that affects the mating parts.

How should the material grade be specified for equipment connection, suspension or adjustment?

State the required grade or alloy, mechanical condition, corrosion exposure and certificate requirement. The current material scope is stainless steel; grade such as 304 or 316 must be selected against the service environment.

Which interface dimensions should be controlled on this custom fastener?

Confirm the threaded sections, overall length, end features and any locating shoulder, mating-part dimensions, assembly clearance and any functional gauge or installation test. These points should be identified on the drawing.

Request a Quote

To quote Custom Stainless Steel Double-End Connector Stud, send the target quantity, dimensioned drawing or sample, material/grade, finish, inspection and packaging requirements, and delivery destination. For a custom fastener used in equipment connection, suspension or adjustment, please also identify engagement at each end, unthreaded locating sections and alignment and applied load. Hongyuan will confirm manufacturability and commercial terms against the approved specification.

Explore more Hongyuan Fastener products or contact us with your drawing and quantity.
