Custom Stainless Steel Clevis Pin for Furniture

Product Overview

Custom Stainless Steel Clevis Pin for Furniture is presented as a clevis pin for furniture and panel assembly. The purchasing distinction is its head, body diameter, working length and retention or setting feature and the way those features engage the mating parts. The reference photographs support identification; production remains subject to an approved drawing, sample or standard.

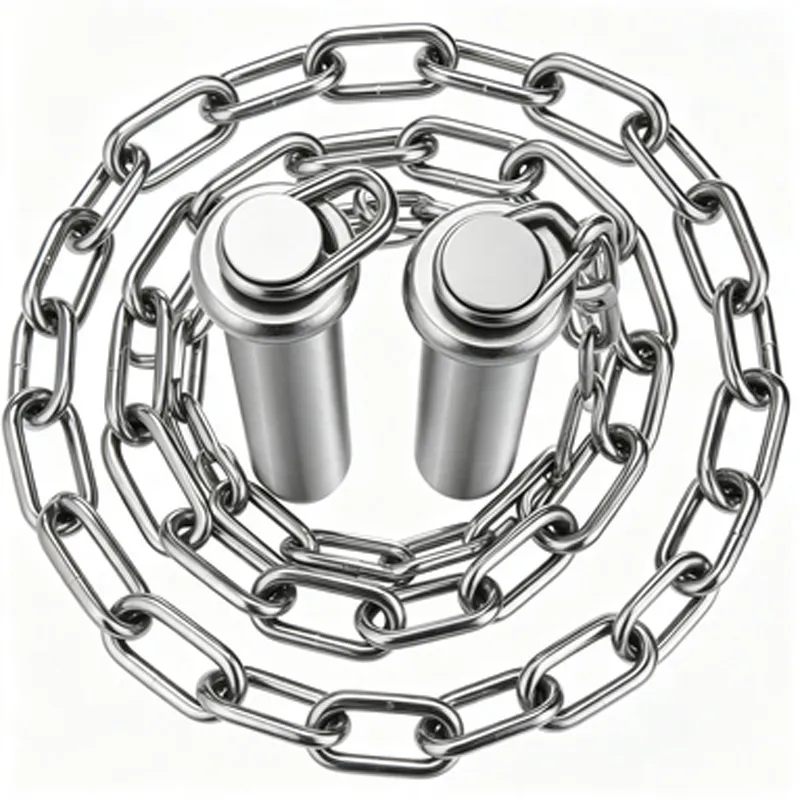

Product image – actual furniture chain pin construction with riveted top, captured wire loop and stainless steel chain.

Product Photo Gallery

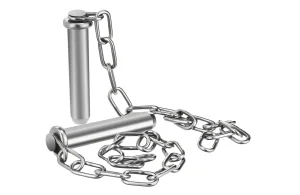

Complete Product View

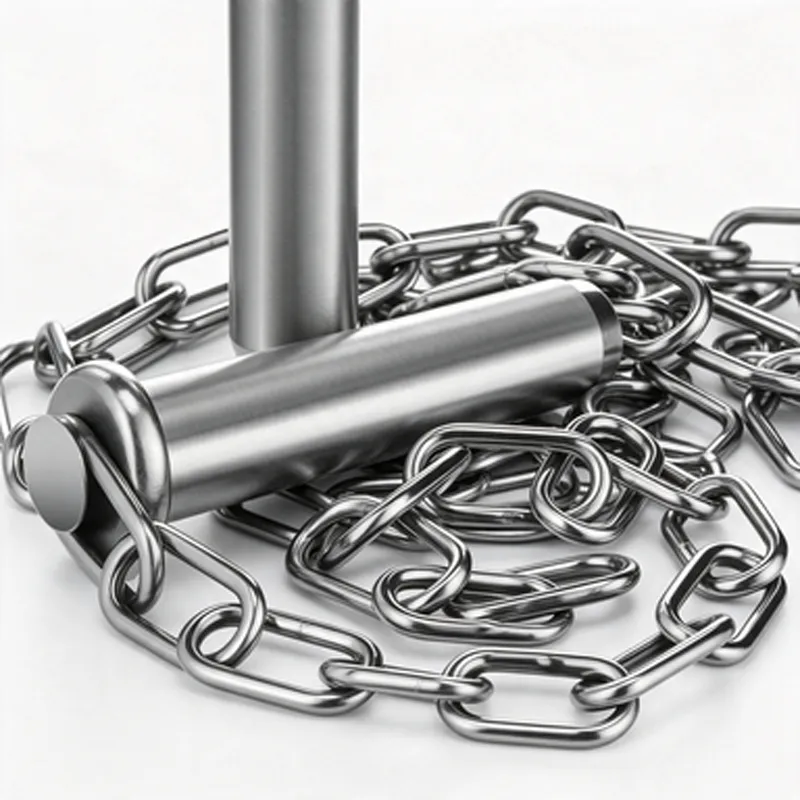

Smooth Ø8 Pin Body

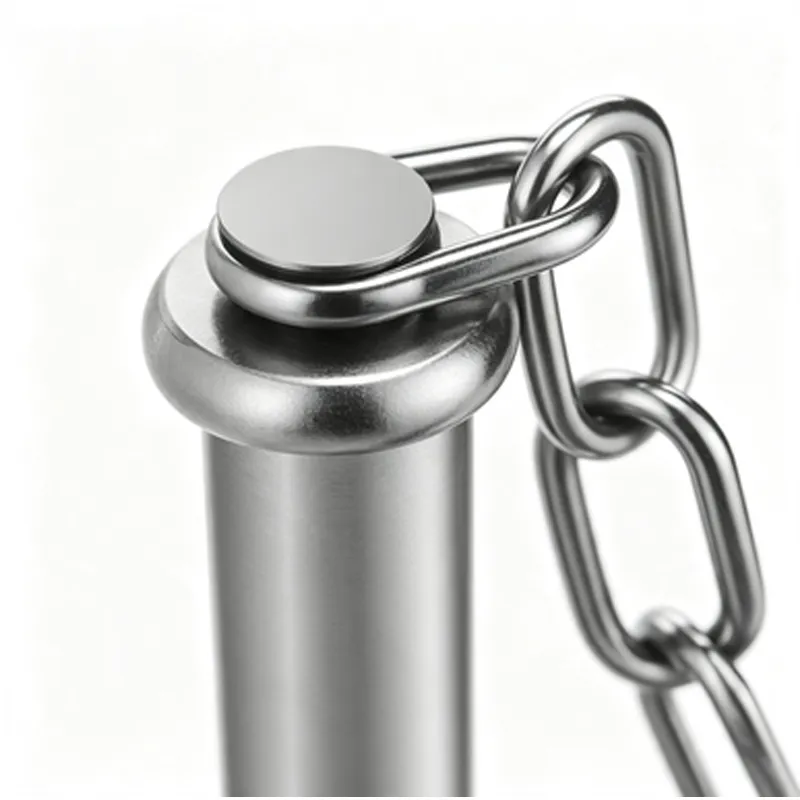

Loop-to-Chain Connection

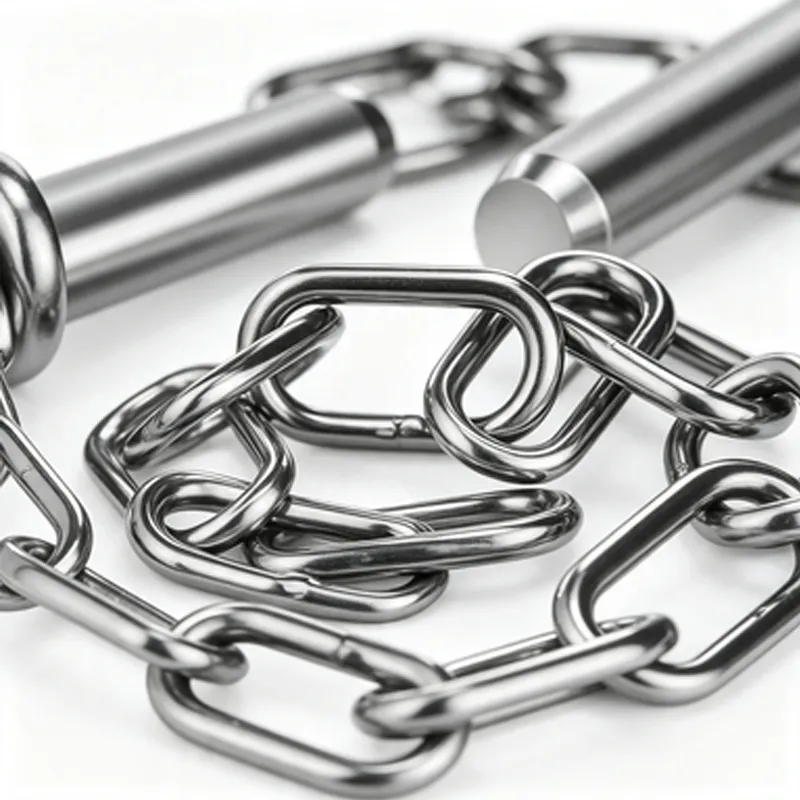

Chain Link Detail

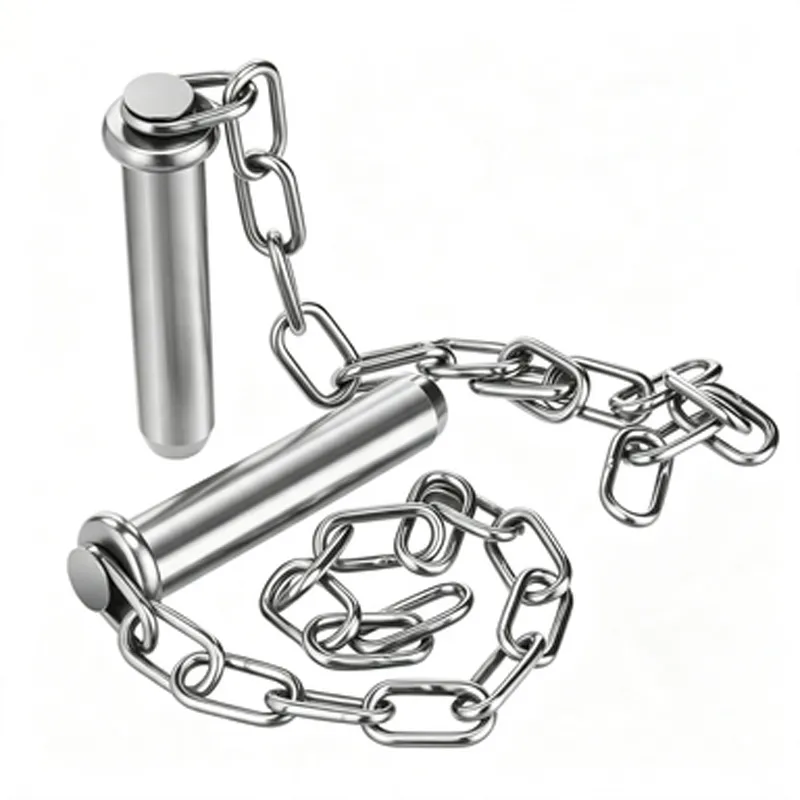

Chain Length / Assembly

Product Specifications

Selection and RFQ Notes for This Clevis Pin

Industrial product catalogues commonly separate comparable parts by standard, material/grade, diameter × length, pitch, thread coverage, head/drive and pack quantity. For this page those fields are treated as RFQ inputs, not assumed stock specifications.

• Size callout: State diameter × overall length, pitch, threaded length or grip length, and every non-standard shoulder, collar or bore dimension.
• Interface geometry: Confirm the head, body diameter, working length and retention or setting feature, together with the mating-part dimensions and any installation clearance limit.
• Material condition: Specify stainless steel; grade such as 304 or 316 must be selected against the service environment; do not use the word “stainless” or “high strength” as the only acceptance requirement.
• Installation fit: Review surface appearance, panel thickness and repeatable dismantling or service access for the intended furniture and panel assembly.
• Inspection: Identify the dimensions and functions that are critical to the clevis pin, together with gauges, reports, sampling level and packaging protection.

Application in Furniture Assemblies

The Ø8 × 45 furniture chain pin is used where a removable pin must remain tethered to a furniture frame, bracket, fixture or service point. The integrated head loop and chain help prevent the pin from being misplaced during adjustment, transport or maintenance. The smooth pin body passes through the mating opening, while the chain is connected at the riveted head assembly. The final installation method, mating-hole size, chain attachment point and load conditions should be confirmed by the furniture designer; the drawing dimensions define the supplied component but do not by themselves establish the load capacity of the complete joint.

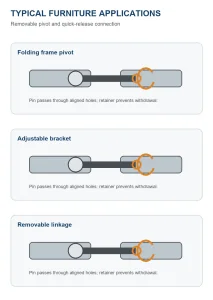

                                                                                             Application image – chain-retained pin used for removable furniture connections.

Product Structure and Key Features

• Drawing-confirmed stainless steel construction for the pin, head components, formed loop and chain.
• Nominal Ø8 × 45 configuration: pin diameter 7.8-8.0 mm and total length 44.5-45.1 mm.
• Riveted head assembly with a 7.7-8.1 mm top diameter and 3.93-3.98 mm rivet shank diamee
• Captured formed-wire loop connects the chain directly at the pin head; no transverse pin hole or separate R-clip is used.
• Chain made from 1.9-2.1 mm wire, with drawing references H 2.8-3.1 mm and DK 11.6-12.0 mm.
• Available with 10 or 15 chain links; chain length can be customized according to the order requirement.


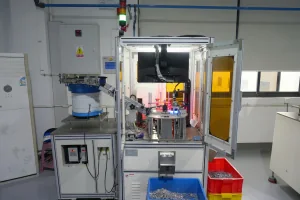

  Quality Inspection Process

  The control plan should follow the buyer’s critical-to-function dimensions and the agreed sampling level. Typical checkpoints are shoulder or pin diameter, concentricity and step length, thread engagement, and burr and edge condition. Certificates or special reports are supplied when they are included in the quotation.



  Approved Engineering Drawing

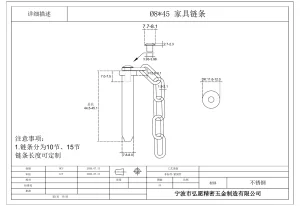

  Approved engineering drawing – Ø8 × 45 furniture chain pin, stainless steel, non-standard fastener. Drawing date: 2026-07-13.

  The table below transcribes the drawing values. The source drawing prints the head-thickness range as 2.7-2.3 mm; the table presents the same limits in ascending order as 2.3-2.7 mm.

  Editable Dimension Table

  Symbol	Drawing Description	Confirmed Dimension
  Ød	Pin diameter	7.8-8.0 mm
  L	Total length	44.5-45.1 mm
  D	Top head / button diameter	7.7-8.1 mm
  t	Top head thickness	2.3-2.7 mm*
  d1	Rivet shank diameter	3.93-3.98 mm
  A	Head / eye assembly height	7.0-7.5 mm
  H	Chain reference dimension	2.8-3.1 mm
  Øw	Chain wire diameter	1.9-2.1 mm
  DK	Chain reference outer dimension	11.6-12.0 mm
  Links	Chain length option	10 links / 15 links / customizable

  Customization and Ordering Information

  Quotation and production should reference the approved Ø8 × 45 furniture chain drawing. Please confirm the required link count (10 or 15), any customized chain length, order quantity, inspection plan, surface requirements and packaging. If the mating furniture structure or use conditions impose additional fit, corrosion, retention or load requirements, provide the assembly drawing and acceptance criteria for review.

  Customization & Order Information

  Item	Confirmed Hongyuan Data
  MOQ	Confirmed according to product specification and order requirements
  Sample Lead Time	Confirmed after drawing, material and tooling review
  Mass Production Lead Time	Confirmed according to quantity, process and inspection plan
  Packaging	Bag, box, carton or customer-specified protective packaging
  Available / Optional Materials	Stainless steel grade confirmed according to application and drawing
  Confirmed Inspection Items	Inspection according to drawing, tolerance and customer requirements
  Certification / Compliance Applicable to This Product	Confirmed according to project and customer requirements

  Frequently Asked Questions

  Which interface dimensions should be controlled on this clevis pin?

  Confirm the head, body diameter, working length and retention or setting feature, mating-part dimensions, assembly clearance and any functional gauge or installation test. These points should be identified on the drawing.

  Can Hongyuan manufacture from a physical sample?

  Yes. A sample supports identification and reverse review, but a drawing or signed dimensional report should define the final acceptance criteria.

  How are MOQ and lead time established?

  They are quoted after material availability, forming or machining route, tooling, inspection level, finish, packaging and order quantity have been reviewed.

  Which application details should accompany the RFQ?

  Describe surface appearance, panel thickness and repeatable dismantling or service access. These details help determine whether the proposed geometry and material suit furniture and panel assembly.

  Which dimensions are needed to quote this clevis pin?

  Provide diameter, overall length, pitch, thread or grip length, head dimensions and every shoulder, collar, bore or point dimension that affects the mating parts.

  Request a Quote

  To quote Custom Stainless Steel Clevis Pin for Furniture, send the target quantity, dimensioned drawing or sample, material/grade, finish, inspection and packaging requirements, and delivery destination. For a clevis pin used in furniture and panel assembly, please also identify surface appearance, panel thickness and repeatable dismantling or service access. Hongyuan will confirm manufacturability and commercial terms against the approved specification.
