chicago screw with combination head

Product Overview

For furniture and panel assembly, selecting the correct chicago screw involves more than matching the overall appearance. The controlling geometry covers the drawing-defined head or bearing profile, drive or wrenching feature shown on the approved drawing, screw thread and captive washer stack; the remaining RFQ data are material condition, dimensional tolerances and acceptance method. The material scope is carbon steel, stainless steel or another specified alloy; final grade is drawing-controlled.

Product Photo Gallery

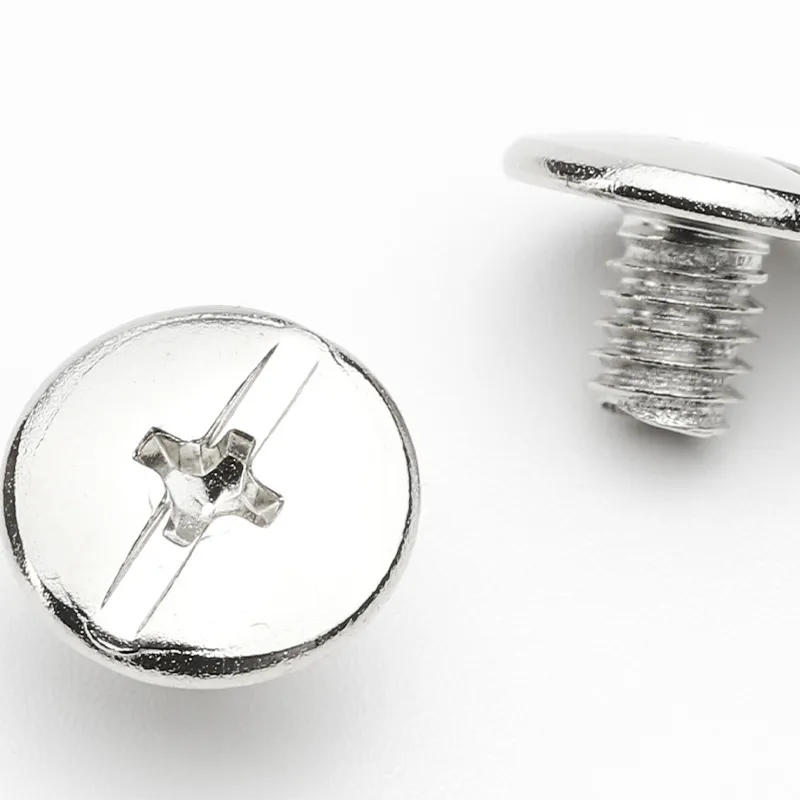

Complete Product View

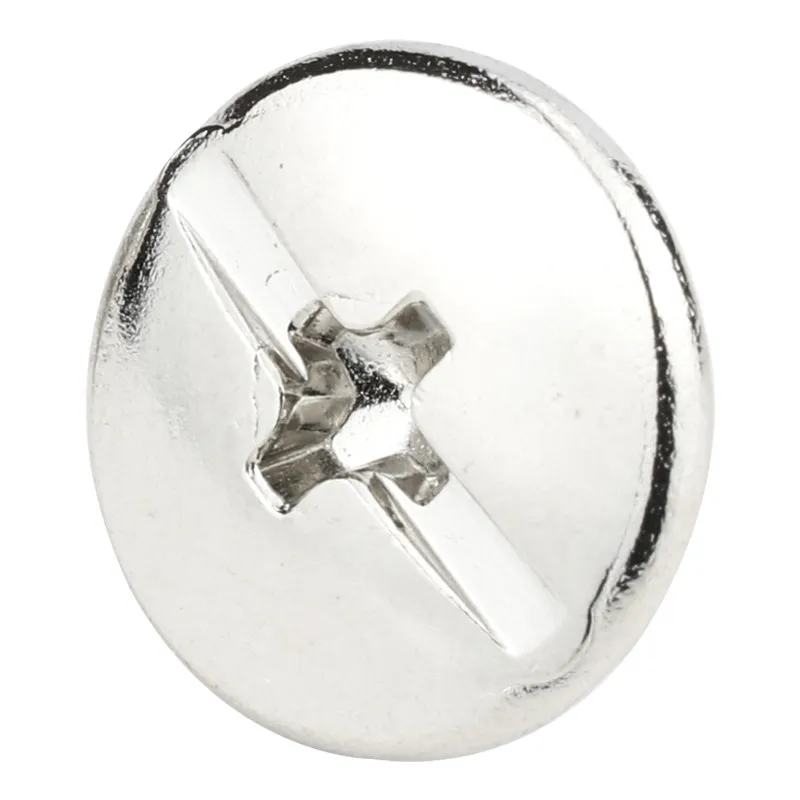

Head and Drive Detail

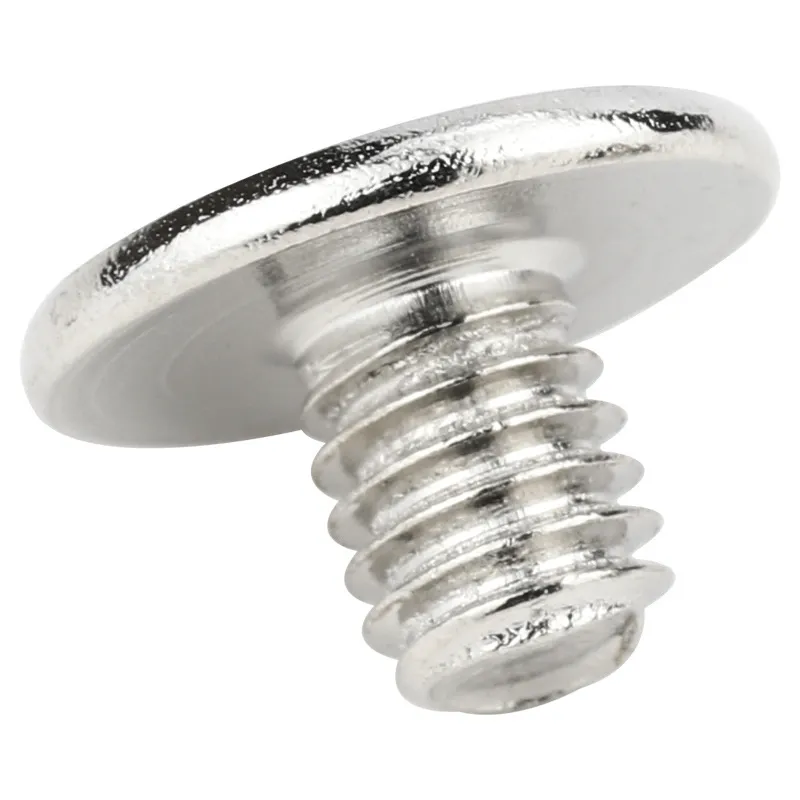

Male Thread Detail

Female Barrel Detail

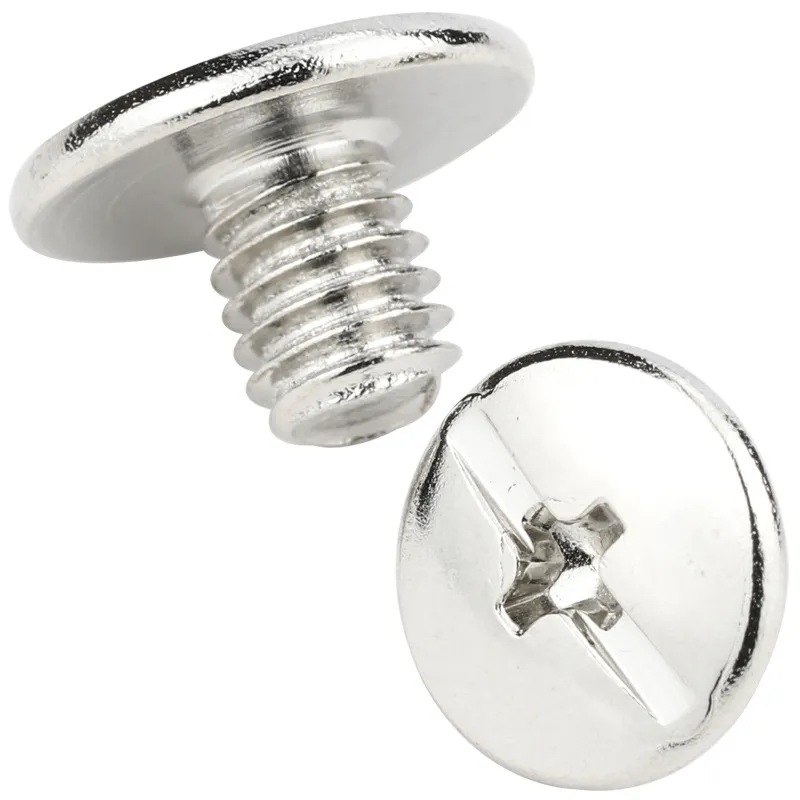

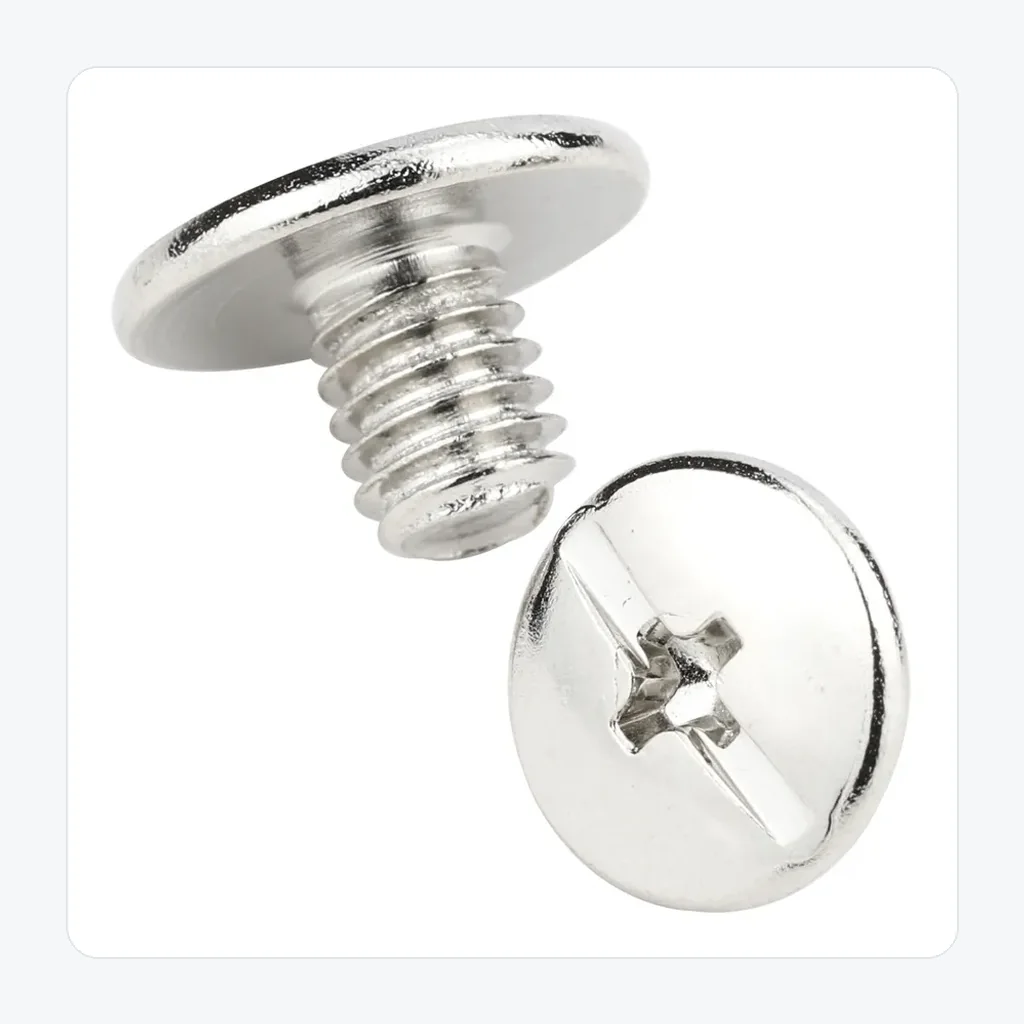

Assembled Product View

Product Specifications

Selection and RFQ Notes for This Chicago Screw

Industrial product catalogues commonly separate comparable parts by standard, material/grade, diameter × length, pitch, thread coverage, head/drive and pack quantity. For this page those fields are treated as RFQ inputs, not assumed stock specifications.

• Size callout: State diameter × overall length, pitch, threaded length or grip length, and every non-standard shoulder, collar or bore dimension.
• Interface geometry: Confirm the drawing-defined head or bearing profile, drive or wrenching feature shown on the approved drawing, screw thread and captive washer stack, together with the mating-part dimensions and any installation clearance limit.
• Material condition: Specify carbon steel, stainless steel or another specified alloy; final grade is drawing-controlled; do not use the word “stainless” or “high strength” as the only acceptance requirement.
• Installation fit: Review surface appearance, panel thickness and repeatable dismantling or service access for the intended furniture and panel assembly.
• Inspection: Identify the dimensions and functions that are critical to the chicago screw, together with gauges, reports, sampling level and packaging protection.

Typical Applications

• Furniture, cabinet and panel joining
• Removable display, leather or document assemblies
• OEM structures requiring a neat, low-profile connection

Application suitability depends on the final material grade, dimensions, mating parts, installation method, load and service environment. Please share assembly details for engineering review.

Drawing-Controlled Structure and Key Features

• Drawing-controlled head
• Body and thread geometry
• Drawing-controlled dimensions, tolerances and thread engagement
• Material, finish and inspection plan configured for the application

The visible features shown in the photos support RFQ review, while the approved drawing, standard and agreed inspection criteria remain the controlling production documents.

Quality Inspection Process

Inspection is built around the drawing characteristics that affect assembly, not a generic cosmetic checklist. Typical checkpoints are overall length, thread gauge result, head and drive geometry, and surface condition. Certificates or special reports are supplied when they are included in the quotation.

• Material and surface-condition verification
• Critical-dimension and tolerance inspection
• Thread gauge, head and drive geometry checks
• Final appearance, count and packaging inspection

Optical / Vision Sorting Inspection

For suitable higher-volume orders, optical or vision sorting can be evaluated for measurable and visible characteristics such as overall profile, head presence, length, drive condition and selected surface defects. The approved drawing and agreed functional tests remain the acceptance criteria.

Drawing and Customization Requirements

For chicago screw with combination head, send a dimensioned drawing or marked sample showing the standard reference, material/grade, size notation, thread data where applicable, drawing-defined head or bearing profile, drive or wrenching feature shown on the approved drawing, screw thread and captive washer stack, finish and packaging. Also identify surface appearance, panel thickness and repeatable dismantling or service access because these points affect suitability for furniture and panel assembly. Any unmarked dimension remains subject to technical clarification before tooling or production.

Customization & Order Information

Frequently Asked Questions

Which dimensions are needed to quote this chicago screw?

Provide diameter, overall length, pitch, thread or grip length, head dimensions and every shoulder, collar, bore or point dimension that affects the mating parts.

How should the material grade be specified for furniture and panel assembly?

State the required grade or alloy, mechanical condition, corrosion exposure and certificate requirement. The current material scope is carbon steel, stainless steel or another specified alloy; final grade is drawing-controlled.

Which interface dimensions should be controlled on this chicago screw?

Confirm the drawing-defined head or bearing profile, drive or wrenching feature shown on the approved drawing, screw thread and captive washer stack, mating-part dimensions, assembly clearance and any functional gauge or installation test. These points should be identified on the drawing.

Can Hongyuan manufacture from a physical sample?

Yes. A sample supports identification and reverse review, but a drawing or signed dimensional report should define the final acceptance criteria.

How are MOQ and lead time established?

They are quoted after material availability, forming or machining route, tooling, inspection level, finish, packaging and order quantity have been reviewed.

Request a Quote

To quote chicago screw with combination head, send the target quantity, dimensioned drawing or sample, material/grade, finish, inspection and packaging requirements, and delivery destination. For a chicago screw used in furniture and panel assembly, please also identify surface appearance, panel thickness and repeatable dismantling or service access. Hongyuan will confirm manufacturability and commercial terms against the approved specification.
